Preamp
To meet the requirement of customers who want to eliminate extra components in their system, a preamp capable of driving the power amplifier is an essential part of the design.

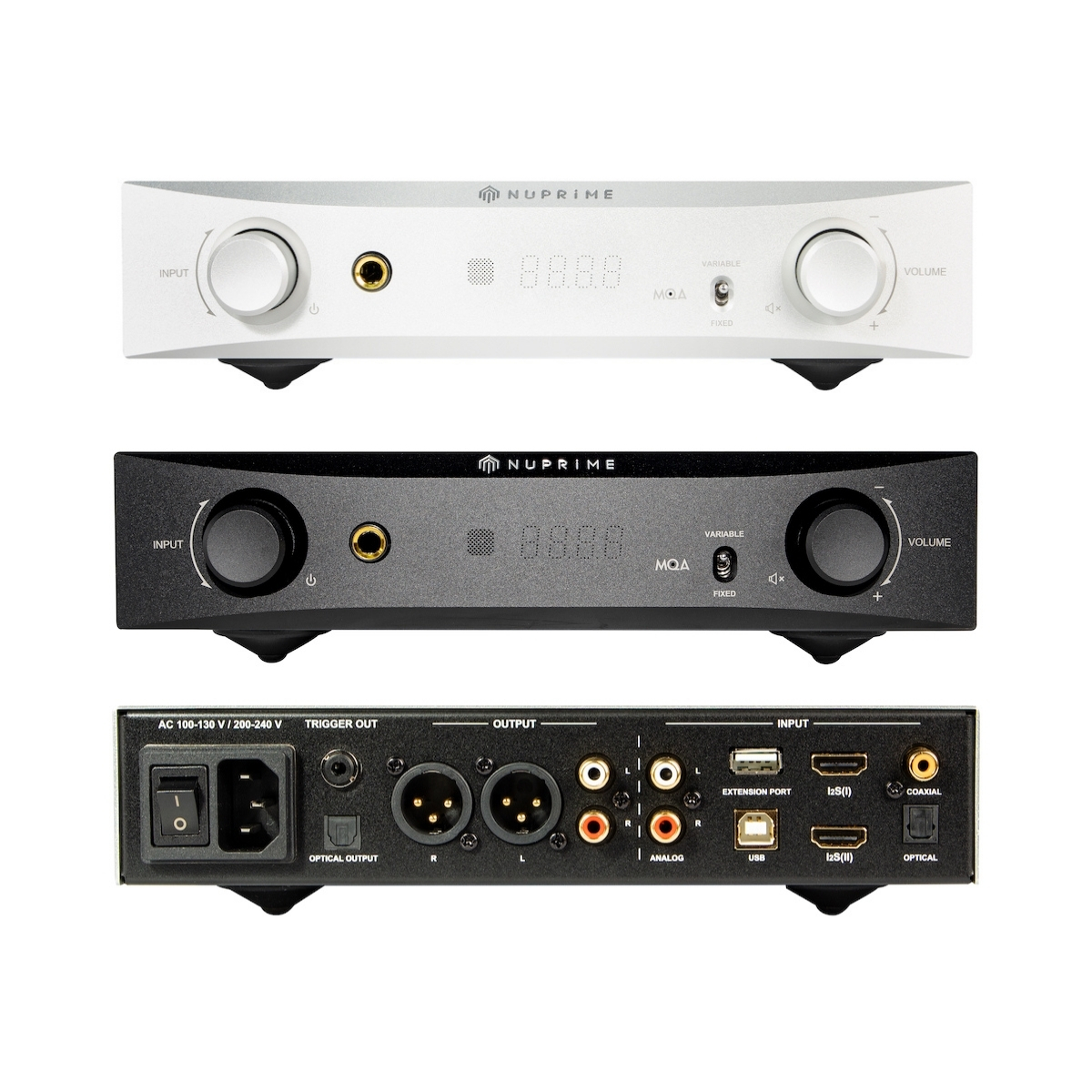

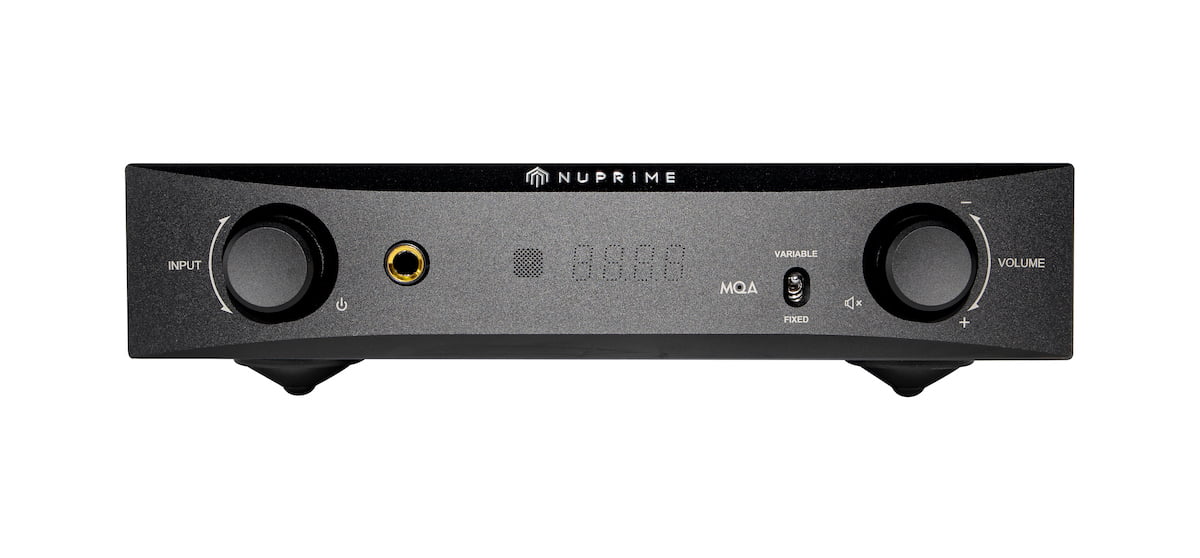

The DAC-9X high-end preamp features include:
- Digital controlled dual-mono analog shunt to ground volume control achieves zero added noise or distortion.
- Individually adjustable volume on each input for precise source level matching.
The integrated preamp eliminates the need for more analog signal cables and connectors’ signal breakpoints.
The Heart
As the heart of an audio system, the DAC-9X supports an extensive number of inputs and formats. Dual ESS Technology 32-bit audio DAC ESS9028Q2M independently decode left and right channels improve channel separation and reducing overall noise. The Vishay professional film MELF resistors provide excellent sound quality.
Power Circuit
The AC hum is kept to a minimum by using a low noise power supply with anti-vibration treatment. The rest of the onboard power circuit is designed to minimise noise as well.
Native MQA Decoding
The DAC-9X includes MQA technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording. The front panel LED glows green or blue to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. It glows blue to indicate it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner. The DAC-9X LED glows magenta to indicate that the unit is rendering an MQA stream or file. This delivers the final unfold of the MQA file.
Other notable features:
- Extension port for Bluetooth receiver and WiFi audio streamer (optional).
- Full microprocessor control with memory retention.
- Supports DSD native playback by ASIO2.1 and DoP method.
- Ultra- low-noise JFETs in the input stage for the lowest possible noise floor.
- Individually adjustable volume on each input for precise level matching of sources.
- Asynchronous transfer mode.
- Very low power consumption on Standby Mode.
