CDT-8 Pro

The NuPrime CDT-8 Pro is a highly accurate professional music CD transport with powerful DSP-based decoder that provides all Red Book error-correction capabilities with master-clock control of the entire decoding system, thus lowering jitter significantly. The transport’s single speed minimizes vibration and unbalanced discs. A selectable sampling rate converter (SRC) samples the CD format to a higher sampling rate (up to PCM 24-bit/768kHz and DSD256) with ultra-low jitter and distortion.

EUR 1,195.00

Category:

The CDT-8 Pro CD Transport comes with features that enable it to out perform all CD transports in its price range.

Highly Accurate CD Playback

  • A powerful ARM chip LPC2103F CD reads, writes and controls error correction
  • Philips SAA7824HL high-end laser reads/writes head control and decodes chips for CD transport.
  • Algorithm reduces digital interference resulting in extremely low jitter
  • Coaxial output with a dedicated isolation transformer
  • Low jitter I2S output for professional use

Sampling Rate Converter

  • The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to 768kHz or DoP256
  • The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion

Power and Mechanical

  • Custom R-type professional transformer with shielding
  • Low power consumption in Standby Mode•
  • NuPrime vibration-free isolation feet
  • High quality aluminium remote control
  • Available in black or silver anodized aluminum finish

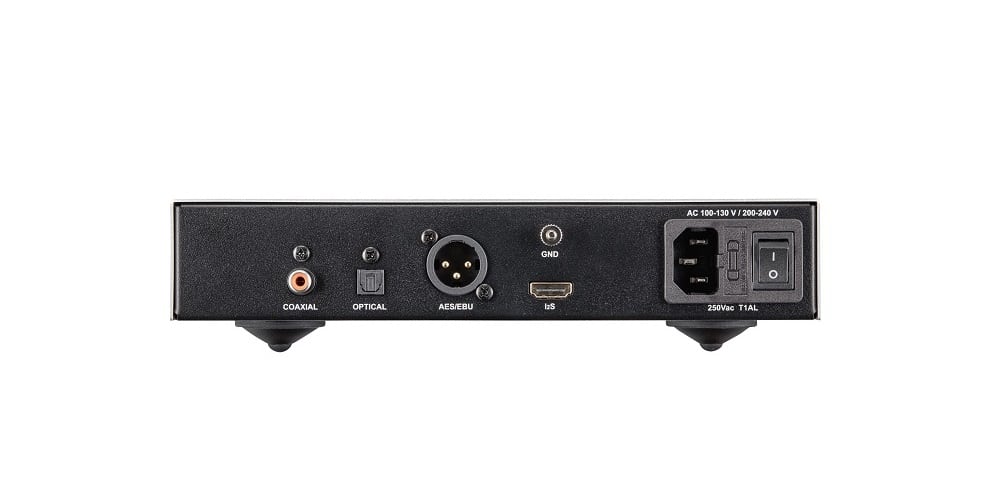

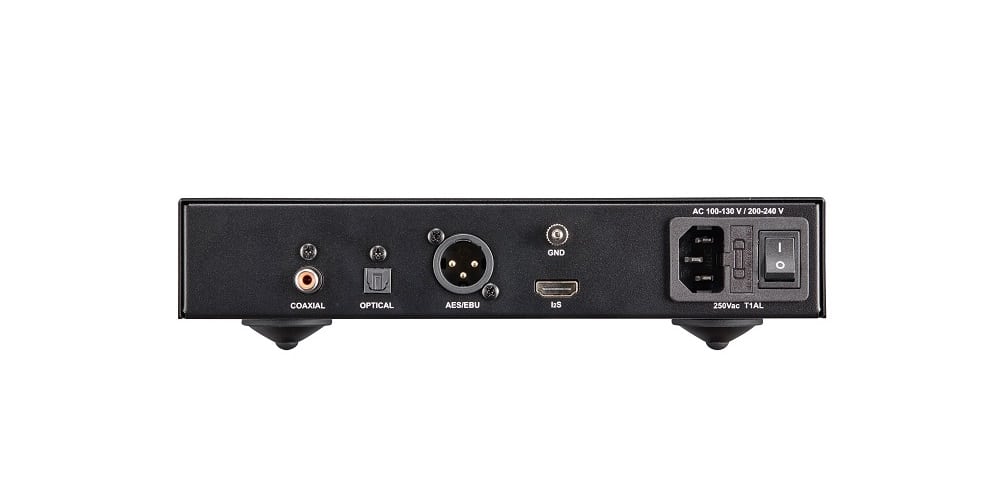

Outputs:

  • Optical Output  (up to 24  bits  /  192 kHz) (DoP64)
  • Coaxial Output  (up to 24 bits  /  768KHz) (DoP256)
  • HDMI I2S* Output (up to 24 bits  /  768KHz) (DoP256)
  • AES / EBU Output (up to 24 bits  /  768KHz) (DoP256)

*Note that the I2S output is for connecting with other NuPrime products and may not work with other devices.

  • Optical Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, DoP64
  • Coaxial Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
  • HDMI I2S Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
  • AES / EBU Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
  • Bit Resolution: 24-bits
  • Dimensions: 235 mm W x 260 mm D x 55 mm H (including feet). The CD transport is 20.5mm from the edge of the case.
  • Weight: 3Kg
  • AC Fuse: Slow-blow, 1A, 250VA
  • Worldwide AC voltage: 100VAC~240VAC
[中文字幕] 高性價比純CD轉盤！Nuprime CDT-8Pro

高性價比純CD轉盤！CDT-8 Pro Review by feverSound.com (Hong Kong)

CDT-8 Pro Review by feverSound.com (Hong Kong)


Read More
Nuprime CDT-8 CD Transport

Nuprime CDT-8 CD Transport

– Sweetmeat, head-fi.org

“…I am always on the lookout for a premium-sounding, reasonably-priced CD transport with a small form factor that I can use at work. It’s not perfect, but I think I found my holy grail with the Nuprime CDT-8.
…OK the Nuprime is still basically from a “boutique” manufacturer so don’t expect a slick operating interface. The important part is that it sounds glorious, full and balanced, smoother than even the Woo Audio which has some peaks in the top end. In addition to the Nuprime, my work stereo includes Burson Conducter SL with Sabre DAC and Audeze LCD-XCs. This is definitely the best my work system has sounded, I am so pleased….”


Read More

→ AudioCircle CDT-8 Discussion

CDT-8 Pro Manual

Instruction for removing jammed disk

NEC Key
CUSTOM CODE : 01FE

KEY CODE
POWER : 0EF1
DIS : 07F8
RPT : 0CF3
OPEN : 05FA
STOP : 06F9
PREV : 04FB
PLAY : 0FF0
NEXT : 0DF2
SRC SELECT PREV : 1CE3
SRC : 02FD
SRC SELECT NEXT : 01FE
